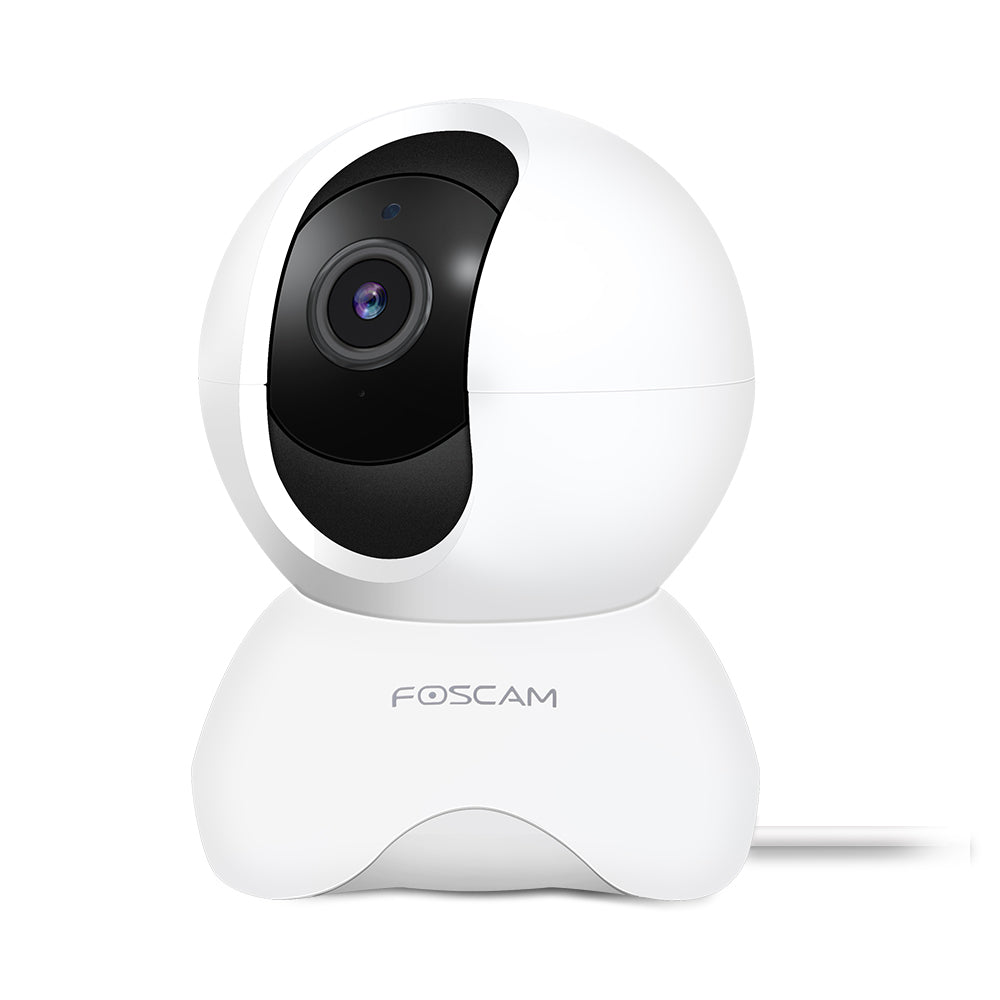

Foscam 5MP Wifi Camera
AI recognition reminder
The intelligent cloud service powered by Amazon AWS, can identify the differences in human bodies, packages, vehicles, and animals on the screen, and precisely filter out the corresponding alarm information for reminders, reducing the interruption of false alarms.
What's in the Box:
- 1 x Foscam R5
- 1 x User Manual
- 1 x Power Cable & Adapter
- 1 x Mounting Plate
- 1 x Pack of Screws
- 1 x Reset Needle
Features
ā Only support 2.4GHz Wi-Fi connections.
ā Support micro-SD card up to 128GB(SD card not included)
ā Support 6X digital zoom
Motion + AI human detection & real-time alerts
Instant push notification via APP when motion/human detection is activated. In addition, you can customize the motion zone to reduce unwanted alerts in activity zones.
Night Vision
4pcs built-in advanced SMD IR-LEDs extend the range of night vision reach up to 8m (26ft). The night vision mode will turn on and off automatically.
Easy to use
By scanning the QR code on the Foscam APP (free download from Play store or APP store), the R5 can quickly connect to the APP. You can view and control the R5 camera anytime, anywhere in the Foscam APP.
Multiple storage options
Videos can be stored in the Cloud service, micro SD card (up to 128 GB, not included), NVR, NAS or FTP server.
Frequently Asked Questions
-
Does it come with batteries? Is it chargeable?
It is not a battery-powered camera. It needs to be plugged into the outlet for continuous and reliable power supply.
-
Can it connect to 5G WiFi?
No. The camera works on the 2.4GHz wireless band
-
Can I view all of cameras at once?
The Foscam App supports to watch 4 cameras on the same screen at the same time and VMS supports to watch 36 cameras on the same screen at the same time.
-
I purchased this camera because I was wanting a baby monitor. Can this operate as a baby monitor?
Yes, of course. You can watch your baby and talk to your baby even when you are out of home or downstairs. I use this wifi camera to watch my honey puppy. Very good purchase.
-
How to reset this camera?
Find the reset button onĀ camera, then use the needle press on the reset button til the camera tells "reset succeeded". Releasing the reset button, the password will back to the factory default administrator password.
-
How to set up Foscam cameras working with Amazon's Alexa?
1. Please make sure your Foscam camera and Foscam app supports Alexa and the Alexa app is installed on your cellphone.
2. Please open the Foscam app and go to Account-->Alexa.
3. Please choose the Alexa and tap on Link.
4. Then the Alexa app all will be opened automatically and please tap on LINK.
5. Then you can choose the option āDISCOVER DEVICESā to add Foscam camera to the Alexa app or speak āAlexa, discoverĀ devicesā to the Echo show directly.
6. After camera is added to the Alexa app, you can speak directly to the Echo show to get the cameraās live stream shown up by voice command.
ITEMS | R5 | |
---|---|---|
Image Sensor | Sensor | High Definition Color CMOS Sensor |
Display Resolution | 5.0M Pixels | |
Min. Illumination | 0 Lux (With IR Illuminator) | |
Lens | Lens Type | Glass Lens |
focal length | f 3.6mm | |
Aperture | F 2.4 | |
Angle of view | Diagonal:89Ā° Horizontal: 71Ā° Vertical: 52Ā° | |
Video | Image Compression | H.264+ |
Image Frame Rate | Max15fps (5MP), downward adjustable | |
Resolution | 5MP, 1080P, 720P, VGA | |
Stream | Dual stream | |
Image adjustment | The hue, brightness, contrast, saturation, sharpness are adjustable | |
Pan/Tilt Angle | Horizontal: 350Ā° & Vertical: 70Ā° | |
Flip image | Flip and mirror | |
Infrared mode | 4pcs SMD IR-LEDs | |
Night mode | Automatic modes | |
Night visibility | 8m | |
Audio | Input/Output | Two-way audio, build-in microphone and speaker |
Audio Compression | PCM / AAC | |
Network | Ethernet | NO |
Wireless Standard | IEEE802.11b/g/n | |
Data Rate | IEEE802.11b: 11Mbps(Max); IEEE802.11g: 54Mbps(Max); IEEE802.11n: 150Mbps(Max). |
|
Wireless Security | WPA, WPA2 | |
Remote Access | P2P | |
Wifi configuration mode | Support scan QR code | |
Network Protocol | IP, TCP, UDP, DHCP, RTSP, Onvif | |
System | Operating System | Microsoft Windows XP/7/8/10; Mac OS; iOS, Android |
Other Features | Motion Detection | Push message to mobile phone and push stream to Cloud |
Sound Detection | Push message to mobile phone and push stream to Cloud | |
Human Detection | Push message to mobile phone and push stream to Cloud | |
Privacy Block | Yes | |
User Accounts | Three levels user role | |
Reset | Reset button is available | |
Power | Power Supply | Micro USB 5V/1.5A or 5V/2A |
Power Consumption | 7.5Watts (Max.) | |
Physical | Dimension(LxWxH) | 83(L)x76 (W)x114 (H) mm |
Net Weight | 206g | |
Environment | Operating Temperature | -10Ā°C~ 50Ā°C (14Ā°F ~ 122Ā°F) |
Operating Humidity | 20% ~ 85% non-condensing | |
Storage Temperature | -20Ā°C ~ 60Ā°C (-4Ā°F ~ 140Ā°F) | |
Storage Humidity | 0% ~ 90% non-condensing | |
Certification | CE, FCC, RoHS, WEEE |
How to Setup Foscam R5 5MP WiFi camera in a minute?
- Download the "Foscam" App on the App Store or Google Play; Sign up for a Free Foscam account
- Click the '+' icon on the Home page and scan the QR Code from R5
- Click the bottom "Ready" and enter the correct wifi information
- Scan the QR Code on the App at the appropriate distance(3.94-5.9in)
- After hearing "Wireless connection succeeded", set your R5 a name
- Then click the live video box to the "Camera Login" setting interface. Please set a username and password for your camera to protect your camera data safety. Then please enjoy the security protection.
SETUP NOTE:
- R5Ā ONLY works with 2.4GHz Wi-Fi networks, does not support 5GHz Wi-Fi
- Make sure the device is On and hear the camera plays the prompt "ready for WiFi configuration" t before setting up
- Smartphone and camera under the Same 2.4GHz Wi-Fi Networks,make sure the WiFi password entered is correct
- Supports Cloud Storage or Class 4 and above, up to 128GB micro SD card (SD Card excluded)
- The camera needs to be plugged into an outlet for continuous power
Tips:
- R5 does not support Web access, if you need to access the camera on your computer, you can download the free PC client from foscam official website; If you need more advanced settings such as FTP, alarm emails, etc, Foscam VMS can also be used to do this;
- You can use two fingers to zoom in/out to control the camera's digital zoom function;
- If you need to connect the R5 to a NVR/NAS, please turn on onvif switch in foscam app settings.
- R5 does not support manual or planned control of the infrared LED switch, only support automatic control of the infrared LED switch according to the change of ambient light;
- The R5 camera does not support ethernet interface access, so if you are concerned about your camera's network, you can add WiFi extender to extend the signal of your wireless router at home.
