Note: The FNA108E-T4 System is compatible with the T8EP outdoor camera.
Stay Vigilant, Stay Reliable
With advanced detection technology, FNA108E-T4 is capable of distinguishing people and cars from other objects, so you'll receive alerts that really matter. Reliable and free of charge!
Exceptional Clarity Day & Night
The sparkling 4K Ultra HD (3840*2160) camera is engineered to deliver insanely flawless videos in astounding clarity and superfine sharpness. It streams and records everything in 4K, adding an extra layer of protection by more visible details and rich colors.
When you view videos on Foscam App/Client, it feels like you are watching on the scene.
Complete Protection

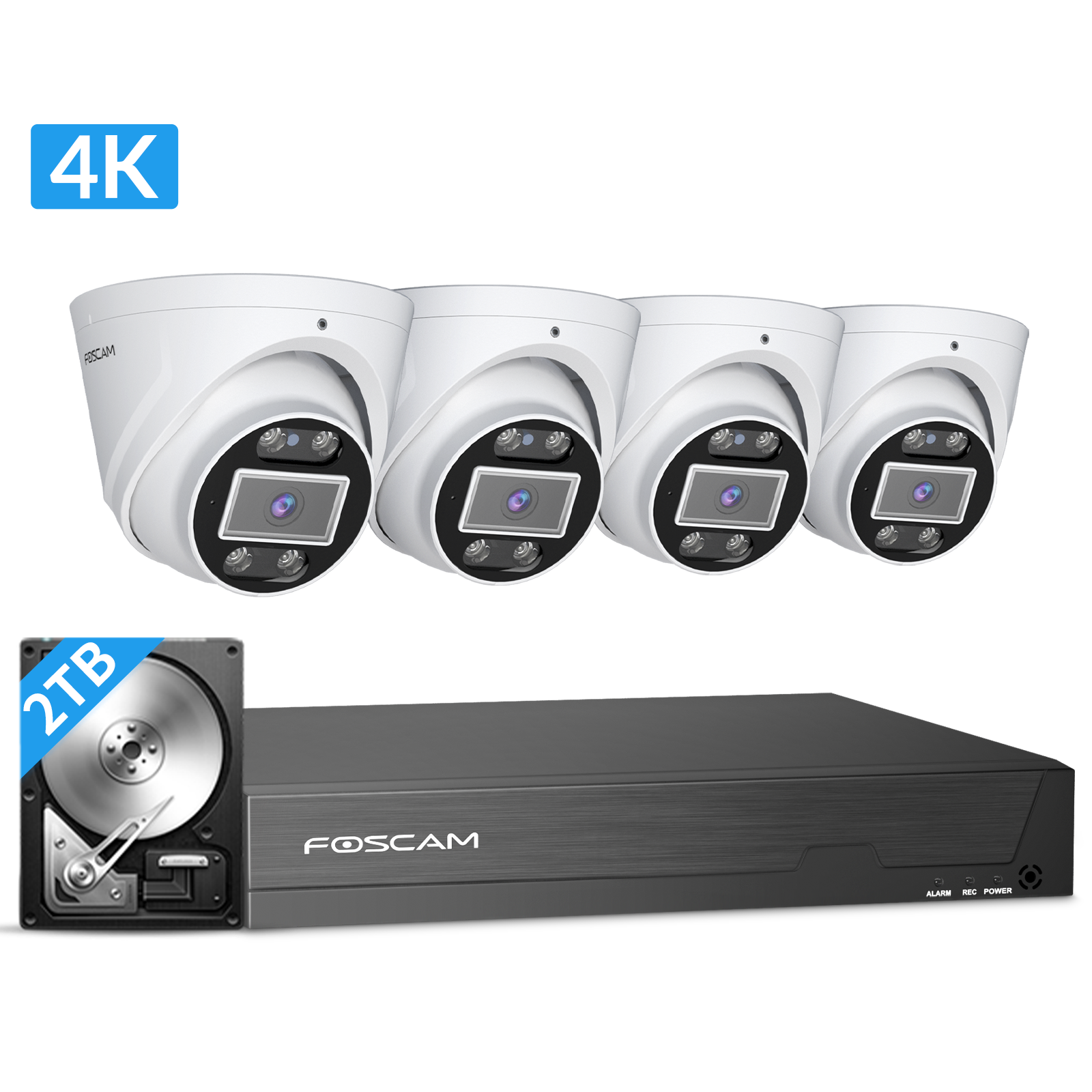

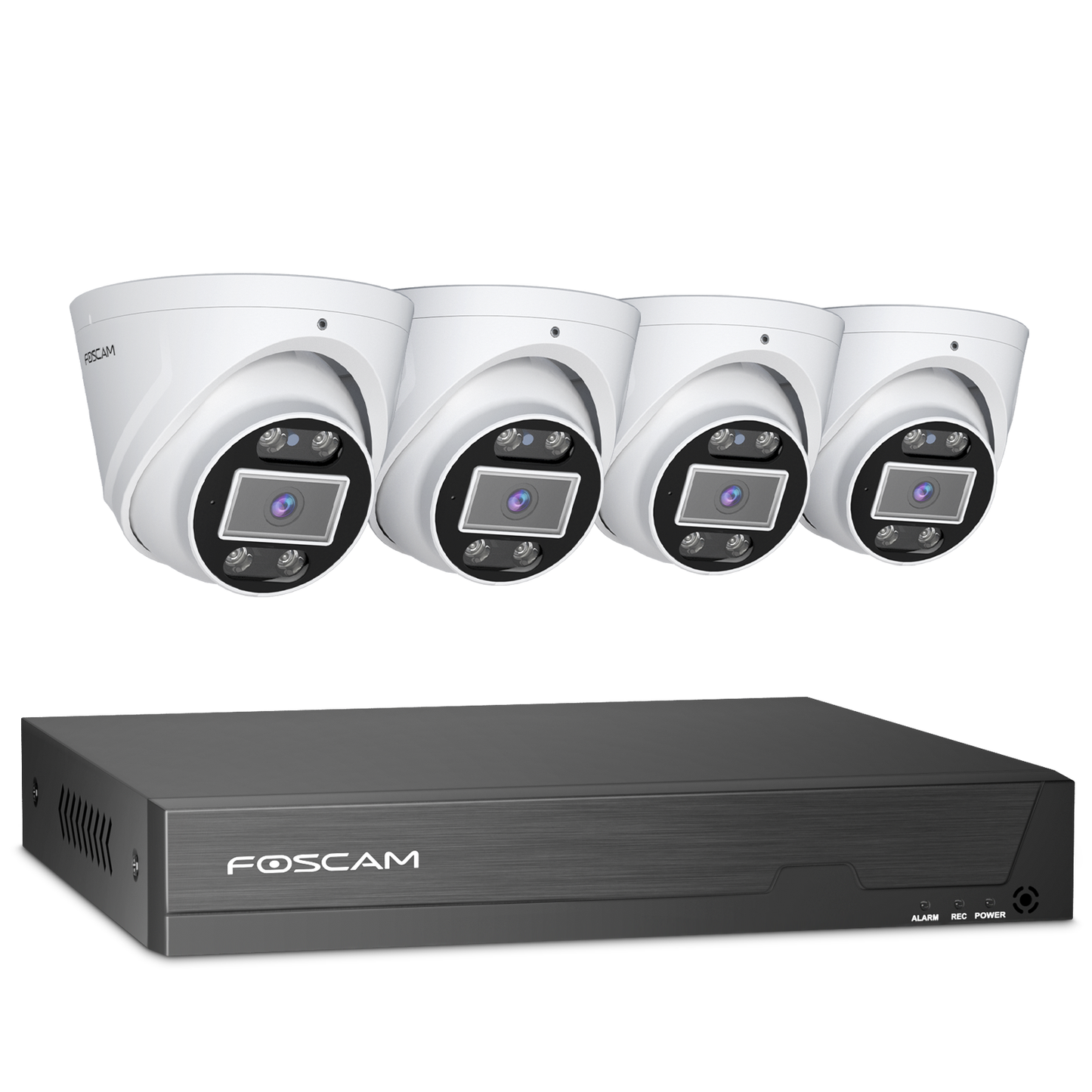

Get the whole system for complete protection. After being powered, four cameras will connect to the NVR in the same system automatically and provide your home with complete protection.
Easy Installation & Control

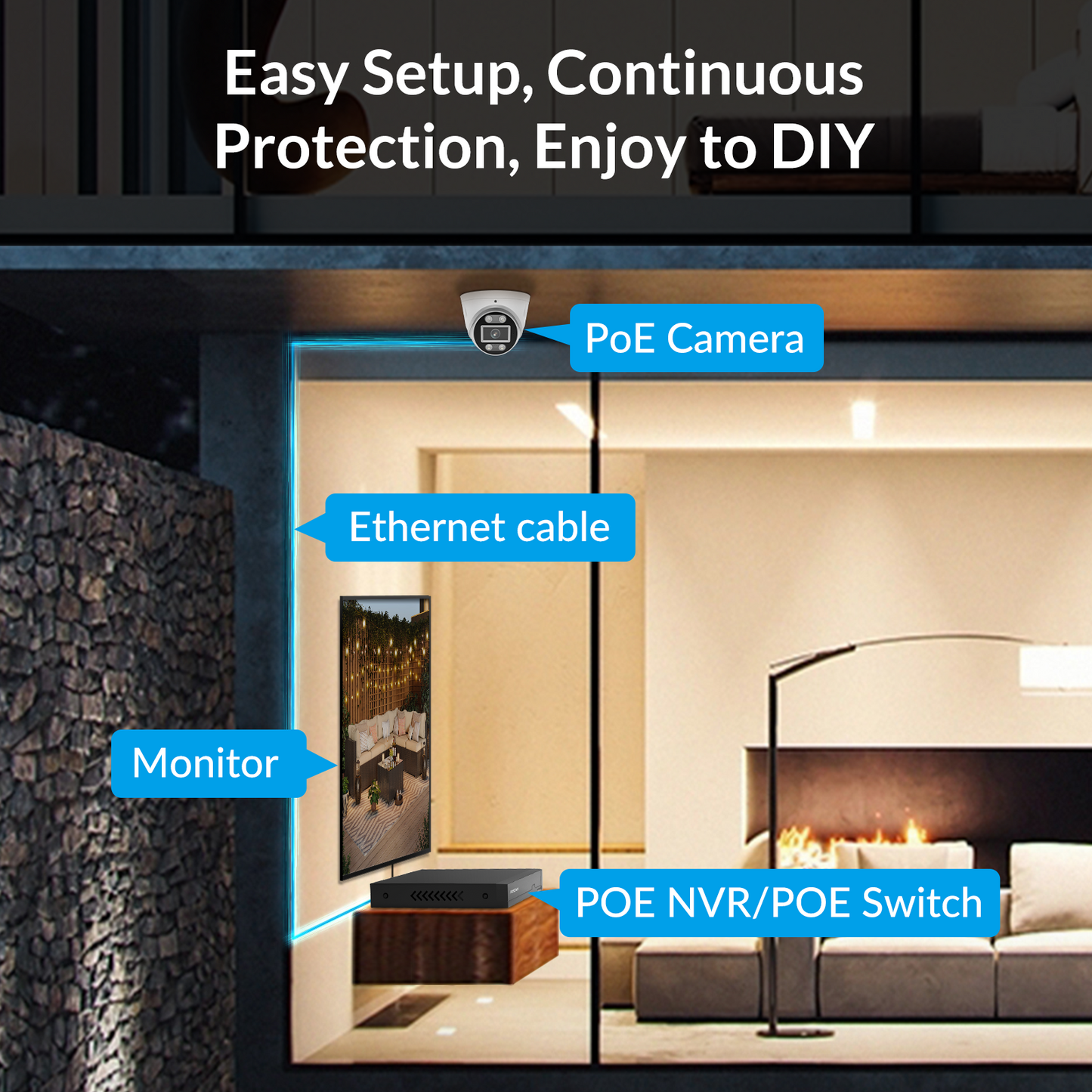

Thanks to Power over Ethernet (PoE) technology, each camera of this security system can transmit videos and be charged simultaneously via only one network cable. You can install these cameras quickly and nicely.Plug & Play,Reliable Connection
PoE Camera
Only needs a network cable
Non-PoE Camera
Needs both a network cable and a power adapter
24/7 Continuous Recording
With a pre-installed 2TB HDD and the storage capacity of up to 16TB, this 4K security camera system supports all cameras to record continuously at the same time. You will have all-day videos without missing a beat.You can also use the Foscam Cloud storage secured by Amazon Web Services, avoid the risk of losing any footage. Playback video recordings on a smartphone or computer.
Works Well with Foscam PoE Camera
This powerful 8-channel network video recorder system supports video recording of up to 8 cameras at a time. Add another 4 cameras to expand coverage areas for complete surveillance in large areas, such as your home, office, store etc.
What's in the Box
Customer Questions & Answers
-
Does my security system work with Google Assistant?
Sorry, the NVR system cannot work with Google Assistant.
-
Does the NVR support the person/vehicle detection of my Foscam cameras?
Yes, the NVR in FNA108E-T4 supports the cameras' smart person/vehicle detection.
-
Which cameras are compatible with Foscam NVR?
Suitable for FLC/VZ4/G4/V5P/QJ4/SD2X/SD4/HT2/SD4H/R4S/R5/FLC/V8EP/V5EP/T5EP/T8EP
-
How can I pre-view or play back the video?
Method 1: Connect the NVR to a monitor or TV for preview or playback;
Method 2: Download FREE Foscam APP or Client, add the NVR to the APP or Client, configure the settings, and then you can preview or play back the videos.
-
How long does the security camera systems store video footage?
The length of time to store video footage is closely related to the video code rate.
NVR | Model | FNA108E-T4 |
---|---|---|
Video Input | IP Video Input | 8 Channels FHD IP camera input |
Video Output | HDMI Output | 1×HDMI |
VGA Output | 1×VGA | |
Display Resolution | 3840x2160,2560x1440,1920x1080,1440x900,1280x1024,1280x800,1280x720, | |
Recording | Recording Resolution | Up to 8MP per channel ( 8ch@8MP ) |
Record Mode | Time Scheduled / Motion Detect | |
Compression Format | H.264/H.264+ | |
Playback | Synchronous Playback | 8 channels synchronous video playback |
Playback Mode | Pause / Stop / Slow / Fast/ Frame Play | |
HDD | Capacity | Up to 16TB |
Network | POE Standard | IEEE 802.3at/af |
Network Protocol | IP, TCP, UDP, SMTP, DHCP, RTSP | |
External Interface | Network Interface | 1× 10/100/1000 Mbps RJ45 port |
USB Interface | 2× USB2.0 interface for mouse and external storage | |
Button | 1× Power on/off button,1× Reset button | |
Language | Language | 17 languages |
Physical and Environmental | Power Supply | DC 48V/2A |
Dimension(LxWxH) | 255mm*238mm*50mm | |
Net Weight (g) | 880g | |
Operating Temperature | 0°C ~ 55°C (32°F ~ 131°F) | |
Operating Humidity | 20% ~ 85% non-condensing | |
Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) | |
Storage Humidity | 0% ~ 90% non-condensing |
Note: The FNA108E-T4 System is compatible with the T8EP outdoor camera.

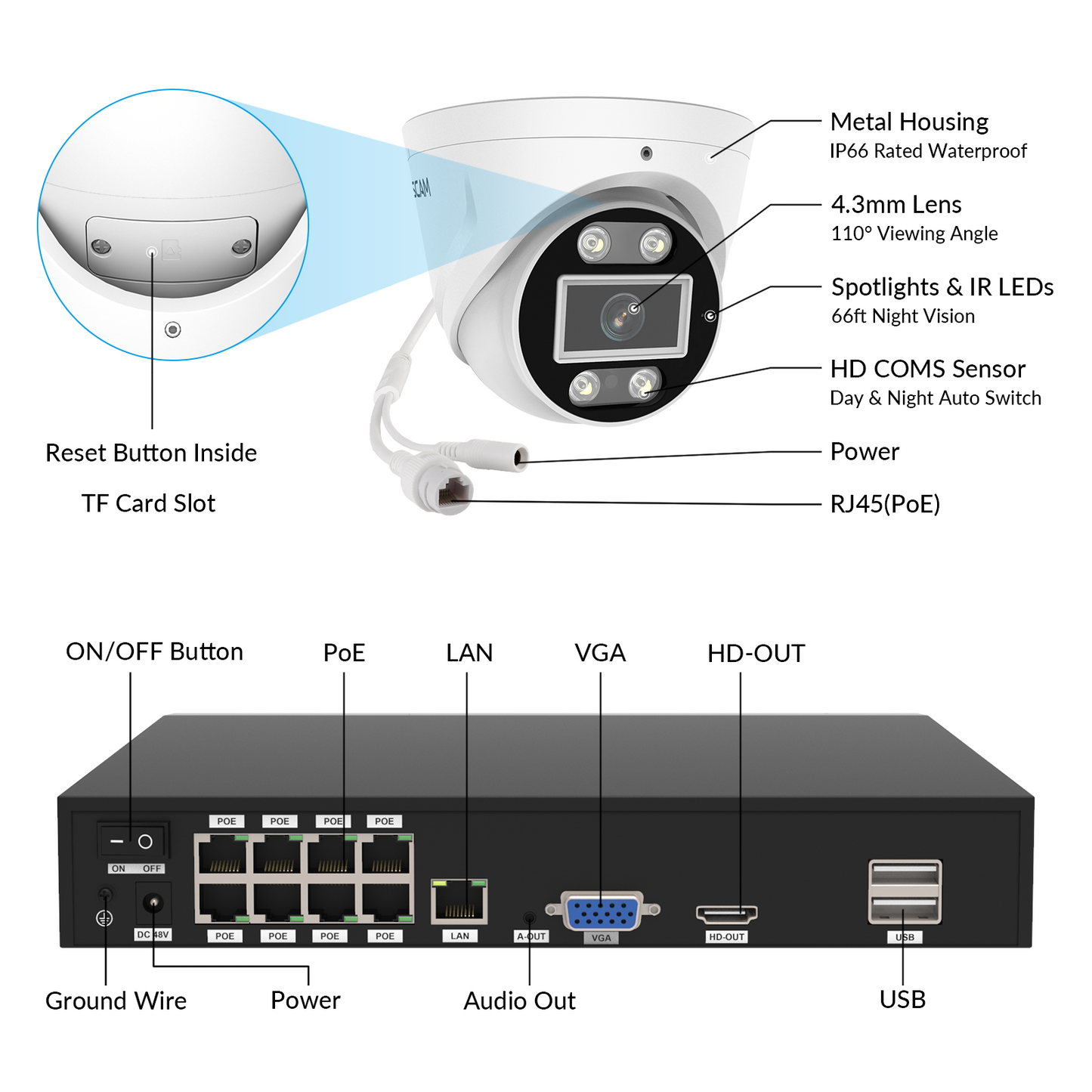

Camera | Model | T8EP |
---|---|---|
Color | Color | White |
Video | Lens Type | F:4.3mm,F1.6 |
Min. Illumination | 0 Lux (With IR Illuminator) | |
Angle of View | Horizontal: 90.1° Vertical: 46.2° Diagonal: 108.5° |
|
Sensor | High Definition Color CMOS Sensor | |
Display Resolution(Max) | 8.0M Pixels (3840*2160) |
|
Color Temperature | 4500K | |
Stream | Dual Stream | |
Input/Output/span> | Build-in mic and speaker,support full duplex real-time 2-way Audio | |
Audio Compression | PCM/AAC | |
Siren | Support maximum 100dB alarm siren | |
IR-CUT | ✔ | |
Night visibility | With 4pcs IR-LED and spotlight, Night Vision Range up to 20m | |
Night mode | Manual and automatic modes,when the white light is on, the night vision image is colored | |
Flip image | flip and mirror | |
Mirro/Flip | ✔ | |
Resolution | 4K(3840*2160) 6M/20 fps,1080P(1920*1080)1M/25fps, 720P(1280*720)1M/15fps | |
Image Compression | H.264+ | |
Network | Network Protocol | IP、TCP、UDP、HTTP、HTTPS、SMTP、FTP、DHCP、RTSP、ONVIF |
P2P | ✔ | |
ONVIF | ✔ | |
Ethernet | One 10/100Mbps RJ45 port | |
Other Features | Motion Detection | Alarm via E-Mail, upload alarm snapshot to FTP |
Human Detection | Alarm via E-Mail, upload alarm snapshot to FTP | |
Vehicle Detection | Alarm via E-Mail, upload alarm snapshot to FTP | |
User Accounts | Three levels user role | |
Firewall | Supports IP Filtering | |
Intelligent Assistant | Suppports Alexa, Google Assistant | |
Power Supply | DC 12V/1.0A(Not standard) | |
POE Standard | 802.3af | |
Power Consumption | 5 Watts (Max.) | |
Audio in/out | ✔ | |
2-Way Audio | ✔ | |
Physical | Dimension(LxWxH) | 170(L)x66 (W)x66 (H) |
Net Weight | 380g | |
manual Pan/Tilt Angle | N/A | |
Power Consumption | <20W | |
Environment | Waterproof | IP66 |
Vandal-Proof | ✔ | |
Operating Temperature | -20°C~ 50°C (14°F ~ 122°F) | |
Operating Humidity | 10% ~ 80% non-condensing | |
Storage Temperature | -20°C ~ 60°C (-4°F ~ 122°F) | |
Storage Humidity | 0% ~ 90% non-condensing | |
Others | Certification | FCC、CE、RoHS、IP66、UKCA、ERP |
How to pair the wireless connection for FNA108E-T4
Note: FNA108E-T4 System is compatible with the T8EP outdoor camera.
Foscam always cares in every customer's experience and feedback on the product.
Please do right-click on the monitor interface and choose Pair IP Camera.
If that channel added a camera, please delete it and choose Pair.
- Then you will see the below message.
Please go to find the button on your camera and press on it until that message changes like below second snapshot. Then the pair is finished and the camera live video will show up again.
