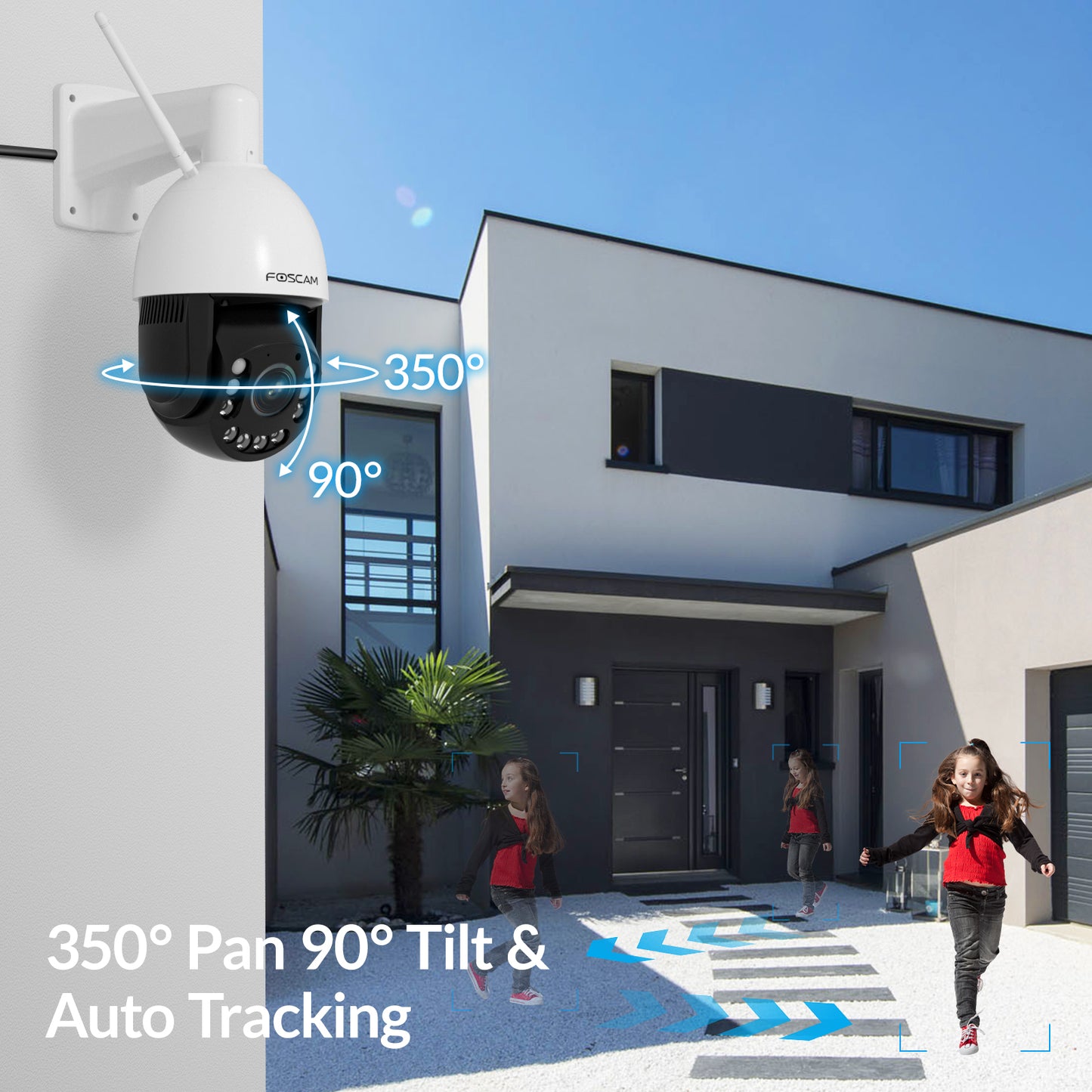

Up & Down,Left & Right,Pinpoint & Track
With 360° pan & 90° tilt, this PTZ camera allows you to view your world from every angle and can follow the moving person automatically. Keep track of intruders and leave them nowhere to hide.
18X Optical Zoom for More Visibility
Its motorized varifocal lens provides a wide viewing angle, and its 18X optical zoom allows you to zoom in for astonishing details or zoom out for maximum coverage.
See All the Details with 2K UHD
Every detail matters when it comes to security. From intricate facial features to small objects and subtle movements, the 2K camera captures the finest details with remarkable precision.
Always So Clear, Even at Night
The 10pcs powerful infrared LEDs in each camera emit invisible lights that pierce the darkness up to 656 feet. Day and night, this security camera system protects your property. A peaceful night sleep can be easily enjoyed now.
Detect and Record Audio with Built-in Microphone
With a built-in microphone, this Wi-Fi camera allows you to hear clear sound on your phone and record audio directly to the microSD card or Foscam cloud.
Simple, Flexible & Durable
The camera supports both 2.4 GHz and 5 GHz frequencies to ensure better performance for camera networking. Flexible to choose, easy to set up.
WiFi Camera
Power-on and done 2.4/5 GHz WiFi connection
PoE Camera
One network cablePlug ang play

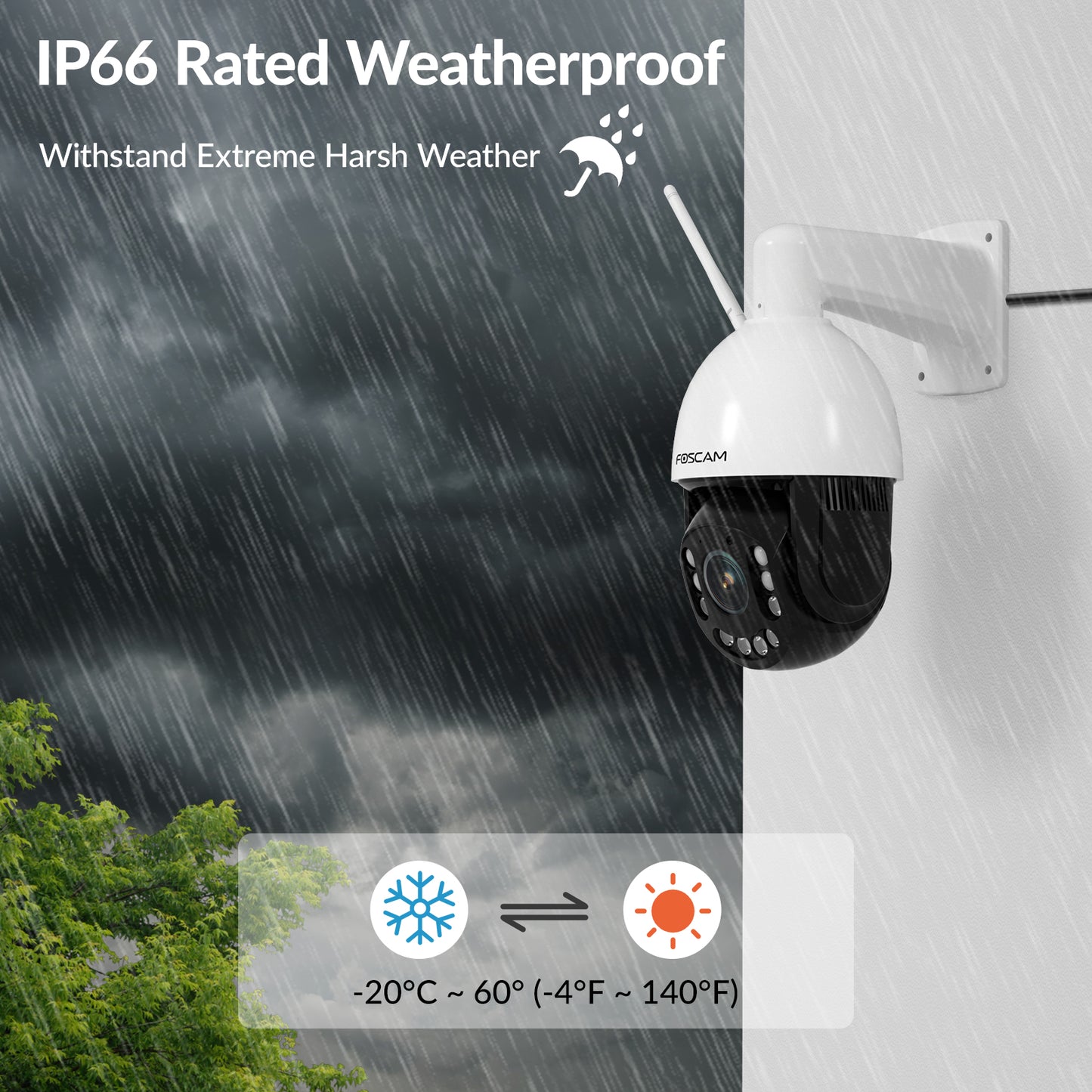

Waterproof Design
This waterproof camera is designed for use in multiple scenarios. Its IP66 housing can withstand powerful water jets, plus intense heat, humidity, and the cold..
Frequently Asked Questions
-
Does the camera need to connect the power supply?
Yes, it is not a battery-powered camera. It needs to be plugged into the outlet for continuous and reliable power supply.
-
What’s the max storage of micro sd card?
It supports max 256G micro SD card.
-
Do I have to subscribe to cloud service to use the camera?
No! We never force customers to subscribe to the cloud service. Just connect to the power then you can see the live stream on your phone.
-
Does this camera maintain a constant video stream (without recording) that can be viewed in real time on my cellphone?
Yes so long as you’re in the Foscam app
ITEMS | SD4H | |
---|---|---|
Image Sensor | Sensor | High Definition Color CMOS Sensor |
Display Resolution | 4.0Megapixels(2560*1440) | |
Min. Illumination | 0 Lux (With IR Illuminator) | |
Lens | Lens Type | f.5.4mm-97.2mm; F1.8~3.9 |
Angle of view | Diagonal: 5.7°~60.8°Horizontal: 5.2°~52.7° Vertical: 3°~30.5° |
|
Video | Image Compression | H.264+/H.264 |
Image Frame Rate | Max 25fps (4MP), downward adjustable | |
Resolution | 2K(2560*1440) 25fps,3MP(2304x1296)25fps,1080P(1920x1080) 25fps,720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) | |
Stream | Dual stream | |
Image adjustment | The hue, brightness, contrast, saturation and sharpness are adjustable | |
Flip image | flip and mirror | |
Infrared mode | Automatic and manual | |
Night visibility | With 6pcs Infrared-LEDs + 4pcs Laser LEDs, night Vision range up to 200 meters | |
Audio | Input/Output | Built-in mic and speaker,supports full duplex 2-way Audio |
Audio Compression | PCM/G.726 | |
Siren | Support maximum 120dB alarm siren | |
Network | Ethernet | One 10/100Mbps RJ45 port |
Wireless Standard | IEEE802.11b/g/n/ac | |
Wifi configuration Mode | Support scan QR code , sound wave to add camera | |
Wireless Security | WPA, WPA2 | |
Remote Access | P2P | |
Network Protocol | IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, RTSP | |
System Requirements | Operating System | Microsoft Windows (Foscam VMS), MacOS (Foscam VMS), Android (Foscam app), iOS (Foscam app) |
Other Features | Auto Tracking | Yes |
Motion Detection | Alarm via E-Mail, FTP and Foscam app when an event is detected | |
Sound Detection | Alarm via E-Mail, FTP and Foscam app when an event is detected | |
Human Detection | Alarm via E-Mail, FTP and Foscam app when an event is detected | |
Vehicle Detection | Alarm via E-Mail, FTP and Foscam app when an event is detected | |
User Accounts | Three levels user role | |
HDR | Improve image clarity in complex scenarios | |
Zoom | 18X optical zoom function | |
Storage | Support max. 256GB Micro SD card, local and FTP storage,Foscam cloud storage | |
Intelligent Assistant | Supports Alexa, Google Home | |
Power | Power Supply | DC 12V/2.0A |
Power Consumption | 30 Watts (Max.) | |
Physical | Dimension(LxWxH) | 215 mm x 138mm x 277 mm |
Net Weight | 1570g | |
Environment | Waterproof | IP66 |
Operating Temperature | -20°C ~ 60° (-4°F ~ 140°F) | |
Operating Humidity | 20% ~ 85% non-condensing | |
Storage Temperature | -20°C ~ 60° (-4°F ~ 140°F) | |
Storage Humidity | 0% ~ 90% non-condensing | |
Certification | FCC、CE、RoHS、IP66 |
Foscam always cares in every customer's experience and feedback on the product.
- For quick setup, we suggest you to download Foscam app on your phone or VMS software on pc first. Download free Foscam apps from the App Store or Google play.
- SD4H 18X Optical Zoom Smart 4MP PTZ WiFi Camera with Spotlight. Please confirm the antenna is already screwed well on the camera before configure it.
- Please confirm the Wi-Fi signal is good enough for the camera to connect. If there are some several obstacles between the camera and your router, this would also decrease the staleness of the signal. We recommend you try to get a better place with better signal or use the 2.4Ghz Wi-Fi channel to connect. If needed, use an Ethernet cable to configure it.
- Please confirm the camera is already upgraded to the newest firmware version once connected, as we will keep upgrade our firmware to help customer get better experience. (Steps for app to upgrade firmware:Foscam APP>>Device>>Firmware>>update)
- If you want to save clips in your Micro SD card, please confirm that it's in exFAT 32 format already.
All products from foscam on our store come with a 1-year manufacture warranty. Please feel free to contact us via support@foscam.com if you have problems with the camera or installation. Our 14-year professional support team will help you with it.
